    1.5m Sensor Actuator Cable M12 T Code 4Pin 12A Female Connector EMI Shielded

    Ask Lasest Price
    Brand Name : CABLEFORCE

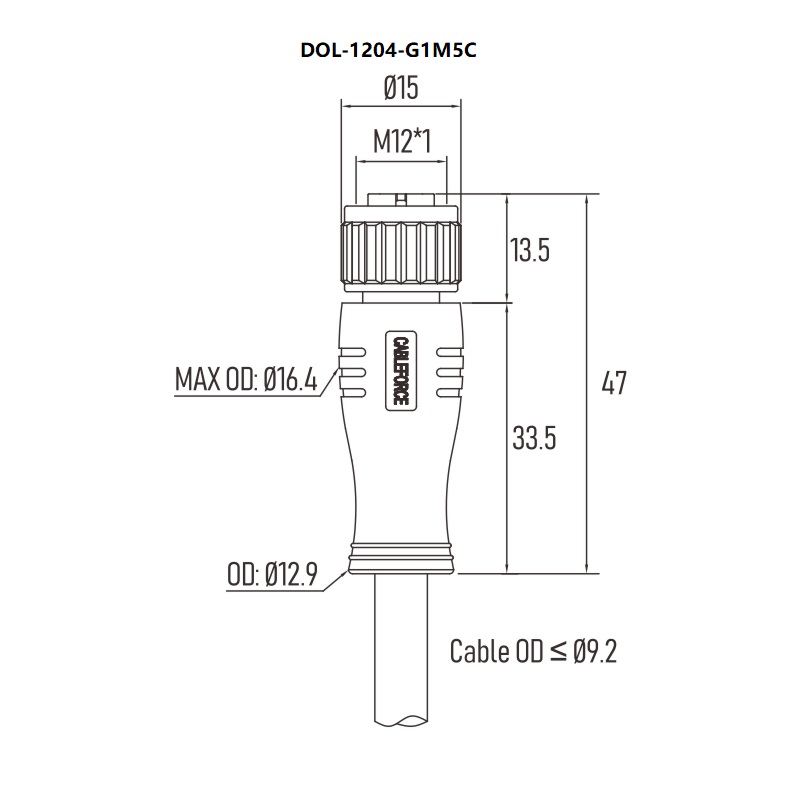

    Model Number : DOL-1204-G1M5C
    Certification : UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
    Price : Negotiated
    Payment Terms : T/T
    Supply Ability : 60000 pcs/month
    Delivery Time : 2~3 weeks
    • Product Details
    • Company Profile

    1.5m Sensor Actuator Cable M12 T Code 4Pin 12A Female Connector EMI Shielded

    1.5M Sensor Actuator Cable M12 T Code 4Pin 12A Female Connector EMIshielded
    Connector Technical Data
    Part Number
    6059939
    Connectors No.
    4 Pin
    Locking System
    M12×1.0 Screw
    Rated Current12 A
    Rated Voltage63V AC
    Impulse Voltage1500V
    Wire Gauge
    AWG 16 1.5mm²
    Mold number
    MC04C2LCTSB16CK15
    Screw nutBrass, CNC, nickel plated
    Contact
    Male: Brass; Female: Phosphor bronze
    Contact Carrier
    PA66 + GF
    Contact Plating
    Au(Gold)
    Protection Degree
    IP67,IP68
    Description
    M12 T-Code connectors are designed for DC power supplies with 12A/ 63V DC, which works well for low-voltage applications, such as power suppliers for fieldbus Ethernet components.The termination structure includes tail cover, inner pad, cable and shielding layer. The tail cover is generally set on the outer surface of the inner pad, and the tail cover and the connector end are fixedly connected, so that the terminated cable diameter is not easy to suffer from M12 The diameter of the circular metal waterproof industrial Ethernet connector can be terminated according to the cable of any diameter size, and the terminated cable has a relatively high compressive strength, small size and compact structure, simple structure, and strong applicability.

    Cableforce Core Benefits


    FREE Technical Consultation

    FREE Technical Drawings

    Samples & Prototyping

    Custom Labels & Packaging

    Using Best in Class Materials

    Competitive Pricing

    Timeline Planning

    Certified Cables on Request

    Quality Control & 100% Testing 100%



    FAQ


    What is EMI Shielding?
    EMI Shielding in electronic devices and equipment is the use of manufacturing techniques and materials to protect signals from being disrupted by external electromagnetic signals as well as preventing generated signals from interfering with surrounding components.
