    2C X 16AWG Industry Standard Ethernet Cable Rail Transit 600V Rated Ethernet Cable

    Ask Lasest Price
    Brand Name : CABLEFORCE
    Model Number : none
    Certification : UL Certified, CUL Certified, CE/ EMC, IP67, IP69K
    Price : Negotiated
    Payment Terms : T/T
    Supply Ability : 60000 pcs/month
    Delivery Time : 2~3 weeks
    • Product Details
    • Company Profile

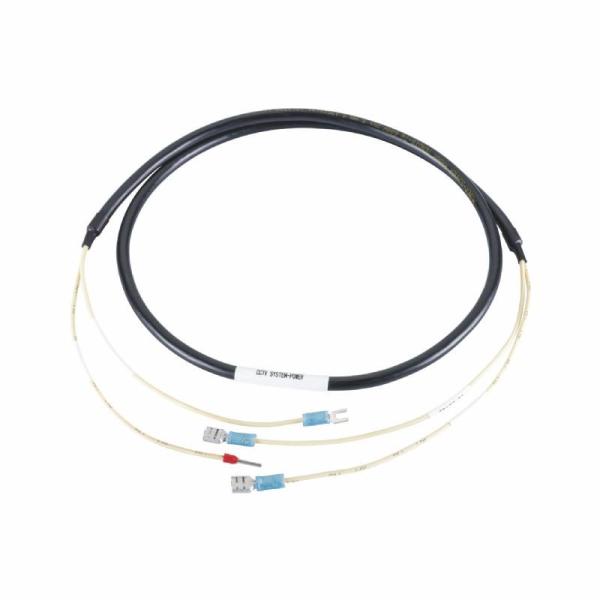

    2C X 16AWG Industry Standard Ethernet Cable Rail Transit 600V Rated Ethernet Cable

    M12 NFPA 130 EN 45545 Industrial Ethernet Female Cable 2C X 16AWG Power Cordsets
    Connector Technical Data
    Rated Temperature
    -55 ℃ ~ 120 ℃
    Rated currernt16A
    Impulse voltage2500V
    Rated voltage
    600V
    Description
    Essential cable constructions for applications in transportation, rail and roadway tunnel, station and signaling control and operation. Simple and fast installation in railway vehicles is enabled by the pre-configured plug and play solution.Cableforce offers pre assembled connectivity solution for servers or CCTV cameras with Cat 5e and Cat 6A Cat7 connectors with EN45545 and NFPA130 cerfified cables.
    Applications such as rolling stock, buses or other vehicles, supports protocols such as : 10GBase T ( 10 Gigabit Ethernet ). 1000Base T ( Gigabit Ethernet ). 100 Base T, 10Base T, cable meets the requirments of the relevant parts standards like EN 45545, ECE R188, DIN 5510 2, EN50305 and NFPA 130.
    Today, all materials used in rail vehicles must follow the EN 45545-2 standard in order to achieve the highest level of safety possible in the event of a fire.

    CABLEFORCE Rail Transit Vehicle Cables Features

    ● Brand: Cableforce

    ● Country of origin: China

    ● NFPA 130 Certified Low Smoke Zero Halogen (LSZH) Cable for Fixed Guideway Transit and Passenger Rail

    ● Package: packaged in a resealable bag

    ● Cable Jacket is Labelled with Self Laminated Label

    ● Certificated: Low somking zero halogen, Oil, coolants, lubricants and emulsion resistance, RoHS Compliant, Electromagnetic resistance, UL94 Flame Retardent , UV resistance , High Low temperature resistant, Suitable for railway applications( EN 45545, ECE R118, DIN 5510 2, EN50305, NFPA 130 )


    FAQ


    What is fixed guideway transit?

    Fixed guideway means a public transportation facility that uses and occupies a separate right-of-way or rail line for the exclusive use of public transportation and other high occupancy vehicles, or uses a fixed catenary system and a right of way usable by other forms of transportation.


    What NFPA 130?

    NFPA 130 is the Standard for Fixed Guideway Transit and Passenger Rail Systems. It contains requirements for train stations, subway stations, the trains or subway cars themselves, and the tracks or paths these vehicles travel on.


    what is UL 94 Flammability?

    UL 94 (Underwriters Laboratories test standard UL 94) is one of the most widely used flammability tests for determining relative flammability for plastic materials. It measures the ability of plastic part to extinguish the flame after ignition and its dripping behavior in response to a small open flame or radiant heat source under controlled laboratory conditions.
    The tests results are intended to serve as a preliminary indication of the material’s suitability with respect to flammability for a particular application, such as plastic materials used for parts in electronic devices and appliances.
