    5 Pin Male Panel M12 A Code Connector Chassis Side Thread With Single Wires

    Ask Lasest Price
    Brand Name : CABLEFORCE
    Model Number : MC5P3LSAB12-22W05
    Certification : CUL Certified, CE/ EMC, IP67, IP69K
    Price : Negotiated
    Payment Terms : T/T
    Supply Ability : 60000 pcs/month
    Delivery Time : 2~3 weeks
    • Product Details
    • Company Profile

    5 Pin Male Panel M12 A Code Connector Chassis Side Thread With Single Wires

    M12 A Code 5 Pin Male Panel Connector Chassis Side Thread With Single Wires For Sensors

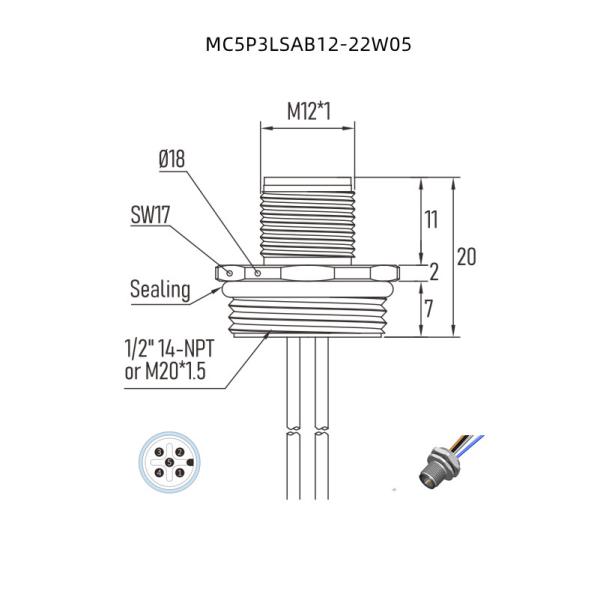

    Connector Technical Data
    Model Number
    MC5P3LSAB12-22W05
    Connectors No.
    5 Pin
    Rated Current
    4 A
    Rated Voltage
    60 V
    Impulse Voltage
    1500V
    O ringFKM, Silicon
    Insulation resistance≥100MΩ
    Contact resistence≤5MΩ
    TerminationSoldering
    Contact carrierPA66, GF
    Pollution degree
    3
    Description
    The M12 family can be found in many applications such as factory automation, measurement and control, communications, food and beverage, transportation, agriculture, robotics and alternative energy.

    A-, B-, D- and X-coded are most prevalent. This is because the A-, B- and D-coded connectors have been around for a long time and are some of the original M12 connectors. X-coded connectors are becoming more popular for high-speed industrial Ethernet and will eventually replace the A and D-coded parts for Ethernet applications.

    A new code, K-coded, is under development for ac power, while a L-coded design will be released soon for Profinet dc power.


    CABLEFORCE Products Features

    ●Gender: Male,Female,Male to Male,Male to Female,Famale to Famale etc.

    ●EMI-Shielded an Un-Shielded are available

    ●CE,IP67,UL Certified

    ​●Using Best in Class Materials


    FAQ


    Why do you choose Cableforce as your partner?


    Cableforce is a company to supply customers with excellent quality cable and connectors at affordable price, Cableforce has the experience and skills to get the job done right.


    How can I get more information about Cableforce?


    If you are interested in our product , welcome to visit our wesite to know more about our company and services.

    5 Pin Male Panel M12 A Code Connector Chassis Side Thread With Single Wires5 Pin Male Panel M12 A Code Connector Chassis Side Thread With Single Wires

    Here are some of catalogue for your reference

    M12 Panel.pdf


    5 Pin Male Panel M12 A Code Connector Chassis Side Thread With Single Wires5 Pin Male Panel M12 A Code Connector Chassis Side Thread With Single Wires
